GA 700

Home / General Purpose Drive / GA 700

Inquiry

Need Advice?
Ask Our Experts! +91 8446900939

Share This :

Description

Features

High Performance type general purpose drive

GA700 ratings: 200 to 240 VAC, 0.55 to 110 kW
380 to 480 VAC, 0.55 to 630 kW

Highlights

One drive controlling any induction, permanent magnet or synchronous reluctance motor
Built in EMC filter, DC choke, braking chopper reduce panel space
Easy motor setup without the need for auto-tuning simplifies tuning with connected machinery
Effortless Network Integration by support of all major networks with cost effective gateway feature
Reduced set-up time with an intuitive keypad, navigation and start-up wizards
Keypad with automatic parameter backup function, real time clock, data logger and copy unit
Powerful DriveWizard PC tool for drive management, start-up, programming and failure analysis
DriveWorksEZ for programming tool for extending functionality by logic programming
Cloud-connected DriveWizard Mobile app for drive management on smartphones and tablets.
Convenient commissioning by programming without main power from PC or Android Smart Phone
Increased safety and reliability with built in STO SIL3 functional safety
Side-by-side and heatsink out the back mounting for minimum panel size and optimized cooling
Ambient temperature of 50 °C without derating (IP20), max 60°C with derating
Meets Global Standards

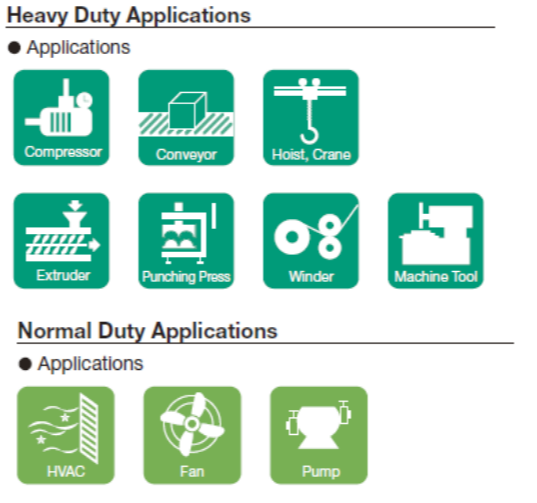

Application

Download

Click here to download Catalogue
Click here to download Manual

Brochure

Models & Ratings

Three- Phase AC 200V

	HD		ND
Code	KW	A	KW	A
CIPR-GA70D2004	0.4	3.2	0.75	3.5
CIPR-GA70D2006	0.75	5	1.1	6
CIPR-GA70D2008	1.1	6.9	1.5	8
CIPR-GA70D2010	1.5	8	2.2	9.6
CIPR-GA70D2012	2.2	11	3	12.2
CIPR-GA70D2018	3	14	3.7	17.5
CIPR-GA70D2021	3.7	17.5	5.5	21
CIPR-GA70D2030	5.5	25	7.5	30
CIPR-GA70D2042	7.5	33	11	42
CIPR-GA70D2056	11	47	15	56
CIPR-GA70D2070	15	60	18.5	70
CIPR-GA70D2082	18.5	75	22	82
CIPR-GA70D2110	22	88	30	110
CIPR-GA70D2138	30	115	37	138
CIPR-GA70D2169	37	145	45	169
CIPR-GA70D2211	45	180	55	211
CIPR-GA70D2257	55	215	75	257
CIPR-GA70D2313	75	283	90	313
CIPR-GA70D2360	90	346	110	360
CIPR-GA70D2415	110	415	-	-

Three- Phase AC 400V

	HD		ND
Code	KW	A	KW	A
CIPR-GA70D4002	0.4	1.8	0.75	2
CIPR-GA70D4004	0.75	3.4	1.5	4
CIPR-GA70D4005	1.5	4.8	2.2	5
CIPR-GA70D4007	2.2	5.5	3	7
CIPR-GA70D4009	3	7.2	3.7	9
CIPR-GA70D4012	3.7	9.2	5.5	12
CIPR-GA70D4018	5.5	14.8	7.5	18
CIPR-GA70D4023	7.5	18	11	23
CIPR-GA70D4031	11	24	15	31
CIPR-GA70D4038	15	31	18.5	38
CIPR-GA70D4044	18.5	39	22	44
CIPR-GA70D4060	22	45	30	60
CIPR-GA70D4075	30	60	37	75
CIPR-GA70D4089	37	75	45	89
CIPR-GA70D4103	45	91	55	103
CIPR-GA70D4140	55	112	75	140
CIPR-GA70D4168	75	150	90	168
CIPR-GA70D4208	90	180	110	208
CIPR-GA70D4250	110	216	132	250
CIPR-GA70D4296	132	260	160	296
CIPR-GA70D4371	160	304	200	371
CIPR-GA70D4389	200	371	220	389
CIPR-GA70D4453	220	414	250	453
CIPR-GA70D4568	250	453	315	568
CIPR-GA70D4675	315	605	355	675

Specification

Product

GA700

Type

Industrial Application Inverter Drive

Rated Voltage

200 to 240 VAC, 0.55 to 110 kW

380 to 480 VAC, 0.55 to 630 kW

Motor Types

Induction Motor (IM)

Permanent Magnet Motor (IPM/SPM)

Synchronous Reluctance Motor (SynRM)

Control

V/f

V/f Control w/ PG

Open Loop Vector

Closed Loop Vector

Advanced Open Loop Vector

PM Open Loop Vector

PM Advanced Open Loop Vector

PM Closed Loop Vector

EZ Vector Control

Speed Control Range

V/f Control without PG, 1:40

V/f Control with PG, 1:40

Open Loop Vector Control, 1:200

Closed Loop Vector Control/ for PM, 1:1500

Advanced open Loop Vector Control, 1:200

Open Loop Vector Control Method for PM, 1:20

PM Advanced Open Loop Vector, 1:100

Closed Loop Vector Control for PM, 1:1500

EZ Open Loop Vector Control, 1:100

Output Frequency

0 to 590 Hz

Braking Transistor

Built-in (2004 to 2313; 4002 to 4168)

Ambient Temperature

‘-10 to +50 °C (IP20), -10 to +40 °C (NEMA 1), up to +60 °C with derating

Protection design

IP20 (standard)

Standards

CE, CSA, UL, cUL, RoHS, RCM

Functional Safety

Safe Torque Off (STO) according to IEC 61800-5-2, tested according IEC/EN61508 (SIL3) and ISO/EN13849-1 (Pl e, Cat. 3); TÜV Süd certified

Control Inputs

8 digital (sink/source), 3 analog (current/voltage), 1 pulse (HTL, max. 32 kHz), 24 Vdc power supply for control cards

Control Outputs

4 digital, 2 analog (current/voltage), 1 pulse (HTL, max 32 kHz), 24 Vdc for external sensors available (max. 150 mA)

Communication

RS-485, 2 wire

CC-Link

MECHATROLINK-III

DeviceNet

PROFIBUS-DP

MECHATROLINK-II

LonWorks

CANopen

EtherCAT

Modbus TCP/IP

PROFINET

EtherNet/IP

Programming Interface

Mini-USB on the front cover; digital operator with Bluetooth

Further Functions

Integrated PID controller with sleep function

Automatic load distribution for multiple axes (droop control)

Automatic main power loss ride through

Speed Search function for smooth start of coasting motors

Braking with over-magnetization for fast stop without braking resistors

Energy-saving function

Automatic restart after failure

Overvoltage suppression

Speed/Torque/Zero Speed Control (Open and Closed Loop)
