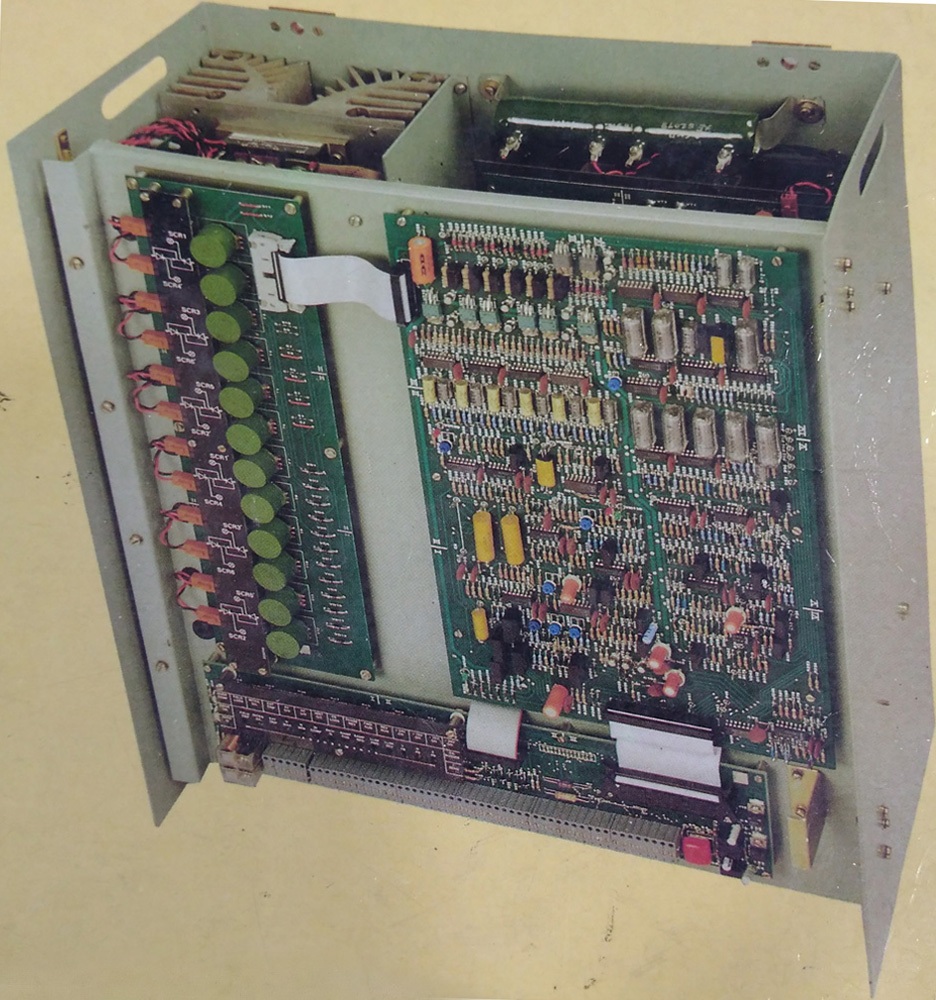

D C Drives

Home / D C Drives / D C Drives

Need Advice?
Ask Our Experts!  +91 8446900939

Description

MODEL 1P

TECHNICAL SPECIFICATIONS

CONTROL METHOD THYRISTORISED FULLY CONTROL.
TYPE SINGLE ENDED.
TYPICAL MOTOR CAPACITY IN KW 2.2 KW - 5.5 KW.
RATED I/P VOLTAGE 1 PHASE 230 V AC 50 HZ.
RATED ARMATURE O/P VOLTAGE 0 - 180 V DC.
RATED ARMATURE O/P CURRENT 10 - 30 AMPS DC
RATED FIELD VOLTAGE I/P 24 - 230 V AC.
RATED FIELD VOLTAGE O/P 18 - 180 V DC.
RATED FIELD CURRENT 2 AMPS DC.
RAMP RATE 4 TO 60 SEC.
AMBIENT TEMPERATURE 50 DEGREE CELCIUS
SPEED CONTROL RANGE WITH ARMATURE FEEDBACK 1 : 50
WITH ARMATURE CURRENT, TENTION CONTROL 1 : 20

FEATURES

  • LED INDICATIONS
  • BUILT-IN PROTECTIONS
  • ADAPTIVE CURRENT REGULATOR
  • ISOLATED ARMATURE FEEDBACK
  • PLC COMPATIBLE
  • ISOLATED CONTROL CARD

MODEL 2P

TECHNICAL SPECIFICATIONS

CONTROL METHOD THYRISTORISED FULLY CONTROL.
TYPE SINGLE ENDED.
TYPICAL MOTOR CAPACITY IN KW 2.2 KW - 5.5 KW.
RATED I/P VOLTAGE 2 PHASE 415 V AC 50 HZ.
RATED ARMATURE O/P VOLTAGE 0 - 350 V DC.
RATED ARMATURE O/P CURRENT 10 - 30 AMPS DC
RATED FIELD VOLTAGE I/P 24 - 230 V AC.
RATED FIELD VOLTAGE O/P 18 - 180 V DC.
RATED FIELD CURRENT 2 AMPS DC.
RAMP RATE 4 TO 60 SEC.
AMBIENT TEMPERATURE 50 DEGREE CELCIUS
SPEED CONTROL RANGE WITH ARMATURE FEEDBACK 1 : 50
WITH ARMATURE CURRENT, TENTION CONTROL 1 : 20

FEATURES

  • LED INDICATIONS
  • BUILT-IN PROTECTIONS
  • ADAPTIVE CURRENT REGULATOR
  • ISOLATED ARMATURE FEEDBACK
  • PLC COMPATIBLE
  • ISOLATED CONTROL CARD

MODEL 6P

TECHNICAL SPECIFICATIONS

CONTROL METHOD THYRISTORISED FULLY CONTROL.
TYPE SINGLE ENDED / DOUBLE ENDED.
TYPICAL MOTOR CAPACITY IN KW 3.7 KW - 600 KW.
RATED I/P VOLTAGE 3 PHASE 415 V AC 50 HZ.
RATED ARMATURE O/P VOLTAGE 0 - 440 V DC.
RATED ARMATURE O/P CURRENT 10 - 1600 AMPS DC
RATED FIELD VOLTAGE I/P 24 - 230 V AC.
RATED FIELD VOLTAGE O/P 18 - 180 V DC.
RATED FIELD CURRENT 1 - 20 AMPS DC.
RAMP RATE 4 TO 60 SEC.
AMBIENT TEMPERATURE 50 DEGREE CELCIUS
SPEED CONTROL RANGE WITH TACHO FEEDBACK 1 : 100
WITH ARMATURE FEEDBACK 1 : 50
WITH ARMATURE CURRENT, TENTION CONTROL 1 : 20

FEATURES

  • LED INDICATIONS
  • 9 BUILT-IN PROTECTIONS
  • PLL SYNCHRONISATION
  • ADAPTIVE CURRENT REGULATOR
  • HIGH FREQUENCY PULSE TRAIN FIRING
  • PLC COMPATIBLE
  • ISOLATED ARMATURE FEEDBACK
  • ISOLATED CONTROL CARD
