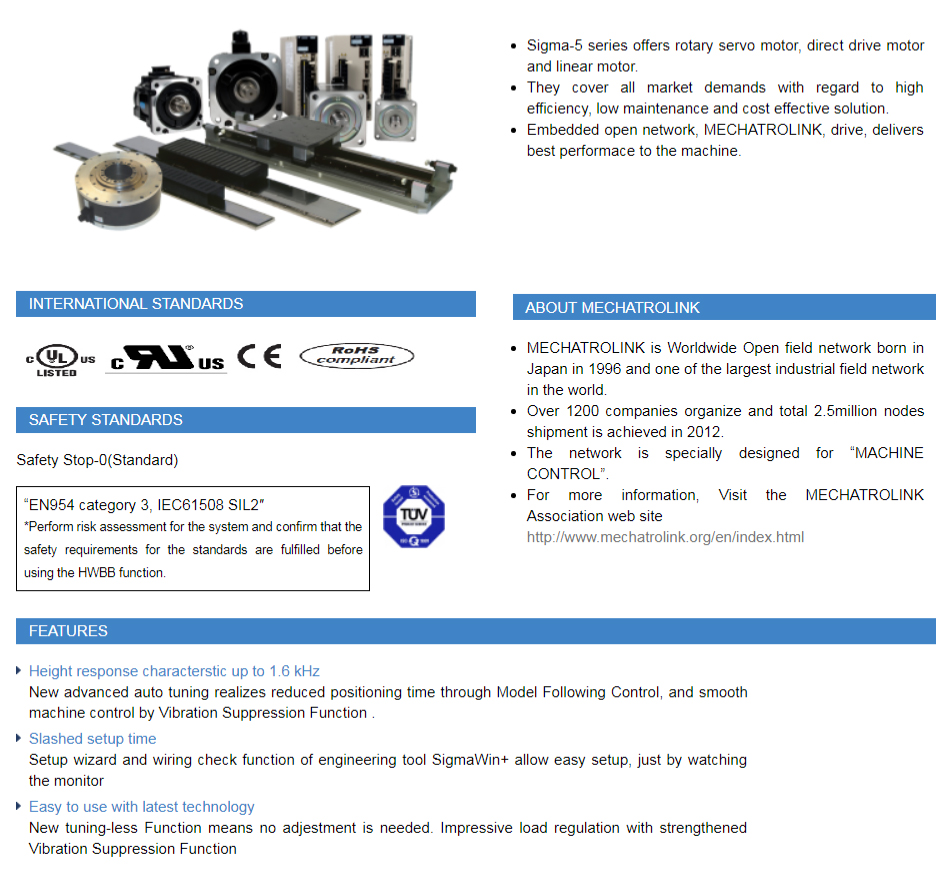

Series SGDV SERVOPACK
S G D V Σ-V

R70
1st+2nd+3rd

A
4th

01
5th+6th

A
7th

000
8th+9th+10th

00
11th+12th

0
13th

1st+2nd+3rd: Current

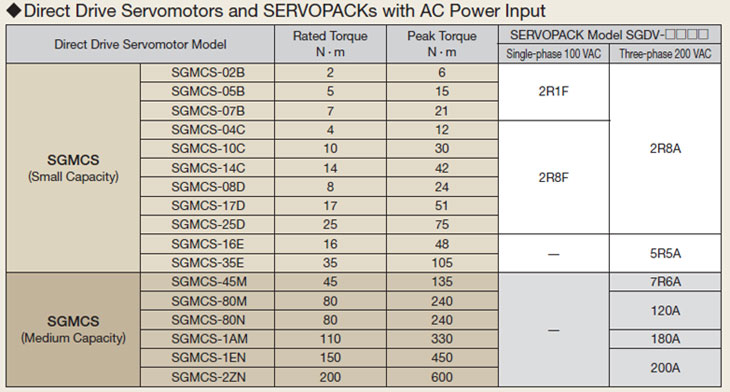

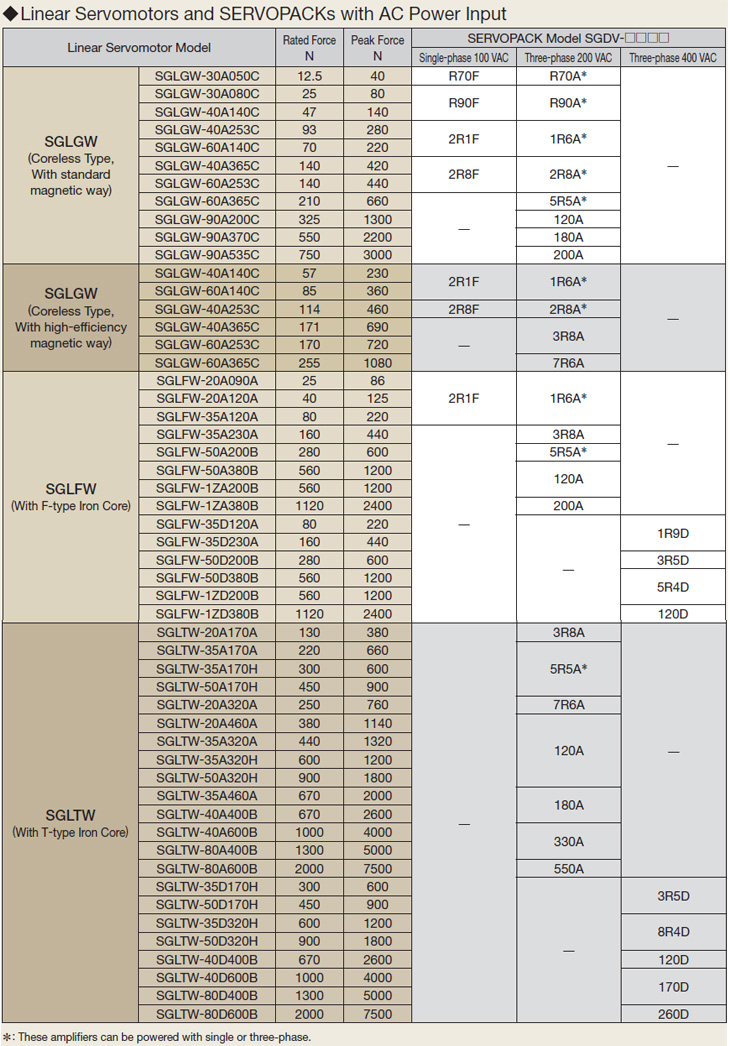

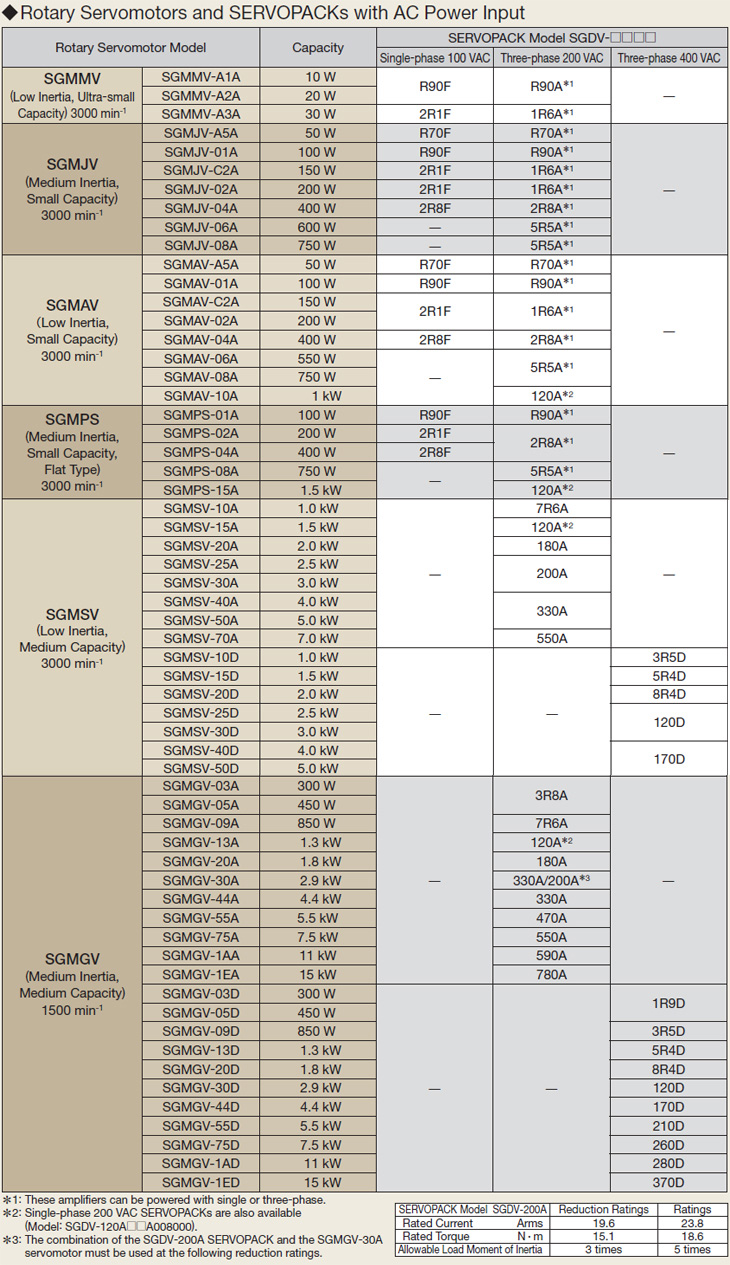

Voltage	Code	Applicable Servomotor Max. Capacity kW
Single phase 100 V	R70	0.05
	R90	0.1
	2R1	0.2
	2R8	0.4
Three-phase 200 V	R70*1	0.05
	R90*1	0.1
	1R6*1	0.2
	2R8*1	0.4
	3R8	0.5
	5R5*1	0.75
	7R6	1.0
	120*2	1.5
	180	2.0
	200	3.0
	330	5.0
	470	6.0
	550	7.5
	590	11
	780	15
Three-phase 400 V	1R9	0.5
	3R5	1.0
	5R4	1.5
	8R4	2.0
	120	3.0
	170	5.0
	210	6.0
	260	7.5
	280	11
	370	15

4th digit: Power Supply Voltage
F	Single-phase 100 VAC
A	Three-phase 200 VAC
D	Three-phase 400 VAC

5th+6th digits: Interface
01	Analog voltage/pulse train reference (for rotary servomotors)
05	Analog voltage/pulse train reference (for linear servomotors)
11	MECHATROLINK – II communications Reference (for rotary Servomotors)
15	MECHATROLINK – II communications Reference (for linear Servomotors)
21	MECHATROLINK – II communications Reference (for rotary Servomotors)
25	MECHATROLINK – III communications Reference (for linear Servomotors)

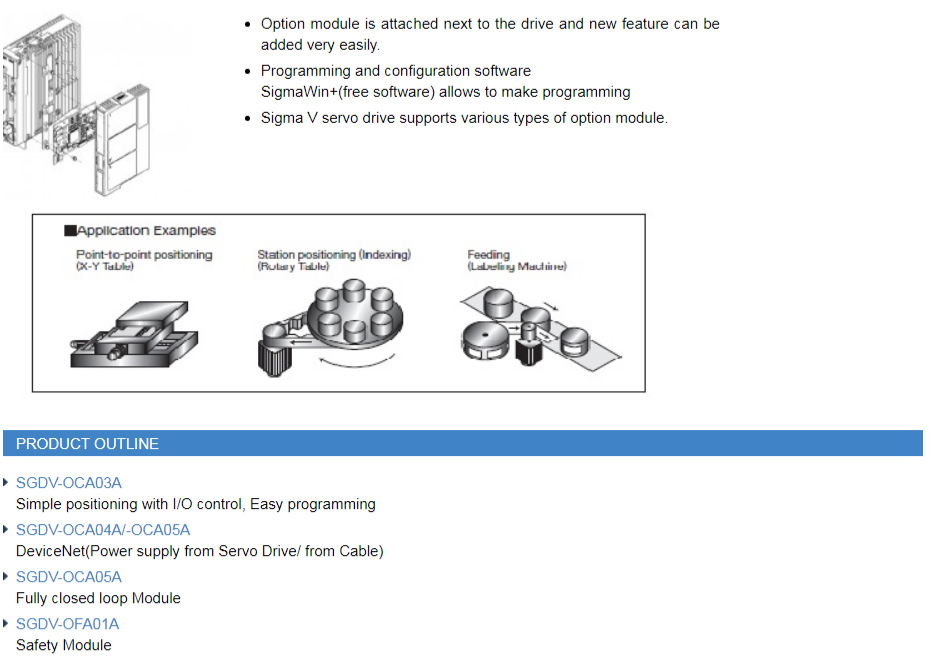

E1	Command Option Attachable Type (For rotary servomotors)
E5	Command Option Attachable Type (For linear servomotors)

7th digit: Revision Order
A, B

8th+9th+10th digits: Options (hardware)
000	Base-mounted (standard)
001	Rack-mounted*3
002	Varnished
003	Rack-mounted*3 and Varnished
008	Single-phase 200 VAC input (Model: SGDV-120A01A008000)
020	Dynamic brake (DB)*4

11th+12th digits: Options (software)
00	Standard

13th digit: Options (parameter)
0	Standard

*1: These amplifiers can be powered with single or three-phase.
*2: Single-phase 200 VAC SERVOPACKs are also available. (Model: SGDV-120A01A008000)
*3: SERVOPACKs of 6 kW or more are duct-ventilated.
*4: Without any dynamic brake. For 400 VAC models, an external dynamic brake can be installed.
Note: If the option codes digits 8 to 13 are all zeros, they are omitted.
Contact your YASKAWA representative for information on combining options.
