Matrix Regenerative AC Drive U1000

Features

Low Harmonic Drive Matrix Converter

Ratings :

• 3 ~ 200V,5.5kw to 75kw
• 3 ~ 400V,2.2kw to 500kw

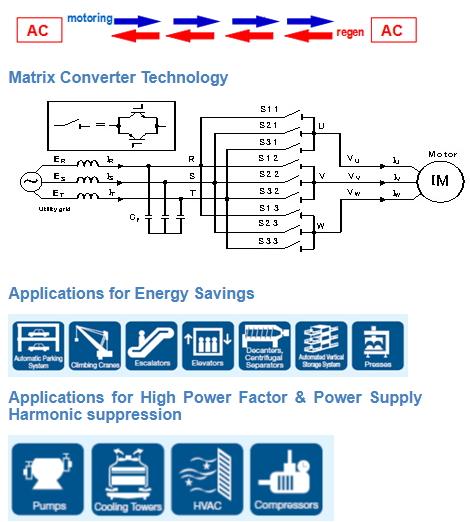

U1000 is the First World Matrix converter which is different from Conventional Inverter drive.It has a Simple efficient design,does not use diodes and capacitors found in an inverter DC Bus. The Matrix converter has got nine bidirectional switches which makes it possible to create variable voltage and variable frequency directly from a 3phase AC power supply.It solves the problem caused by capacitors as they charge & discharge.

Features

• Low Surge.
• Extremely Low Loss.
• Easy Maintenance & Operation.
• Compact, Space-Saving, Less Wiring.
• Powerful Drive, Even at Low Speeds.
• Power supply free of harmonic distortion.
• Energy Saving with Regeneration to Power Supply.
• Fully compatible with all major network protocols.
