AC Drive A1000

Home / General Purpose Drive / AC Drive A1000

Inquiry

Need Advice?
Ask Our Experts! +91 8446900939

Share This :

Description

Features

High Performance Vector Control Drive A1000 Ratings:

3 ~ 200V …. 240V +10%/-15%, 0.55kW to 110kW
3 ~ 380V …. 480V +10%/-15%, 0.55kW to 630kW

The A1000 is the premium inverter from YASKAWA.It provides great operation reliability, environmental benefits and energy savings as well as many other user oriented

Features

Encoder less operation of PM motors with full torque at zero speed
Advanced Auto-Tuning functions to adjust automatically motor settings and analyse continuously changes during motor operation to achieve highest machine performance
Advanced energy-saving control technology which improves efficiency and machine productivity incombination with induction and synchronous motor operation

Application

Download

Click here to download Catalogue
Click here to download Manual

Brochure

HIGH PERFORMANCE VECTOR CONTROL DRIVE A1000

200V Class Three phase

A1000 Catalog No	Pn(kw)-ND	In(A)	Ph(kw)-HD	IHD(A)
CIMR-AD2A0004	0.75	3.5	0.4	3.2
CIMR-AD2A0006	1.1	6	0.75	5
CIMR-AD2A0008	1.5	8	1.1	6.9
CIMR-AD2A0010	2.2	9.6	1.5	8
CIMR-AD2A0012	3	12	2.2	11
CIMR-AD2A0018	3.7	17.5	3	14
CIMR-AD2A0021	5.5	21	3.7	17.5
CIMR-AD2A0030	7.5	30	5.5	25
CIMR-AD2A0040	11	40	7.5	33
CIMR-AD2A0056	15	56	11	47
CIMR-AD2A0069	18.5	69	15	60
CIMR-AD2A0081	22	81	18.5	75
CIMR-AD2A0110	30	110	22	85
CIMR-AD2A0138	37	138	30	115
CIMR-AD2A0169	45	169	37	145
CIMR-AD2A0211	55	211	45	180
CIMR-AD2A0250	75	250	55	215
CIMR-AD2A0312	90	312	75	283
CIMR-AD2A0360	110	360	90	346
CIMR-AA2A0415	110	415	110	415

400V Class Three phase

A1000 Catalog No	Pn(kw)-ND	In(A)	Ph(kw)-HD	IHD(A)
CIMR-AD4A0002	0.75	2.1	0.4	1.8
CIMR-AD4A0004	1.5	4.1	0.75	3.4
CIMR-AD4A0005	2.2	5.4	1.5	4.8
CIMR-AD4A0007	3	6.9	2.2	5.5
CIMR-AD4A0009	3.7	8.8	3	7.2
CIMR-AD4A0011	5.5	11.1	3.7	9.2
CIMR-AD4A0018	7.5	17.5	5.5	14.8
CIMR-AD4A0023	11	23	7.5	18
CIMR-AD4A0031	15	31	11	24
CIMR-AD4A0038	18.5	38	15	31
CIMR-AD4A0044	22	54	18.5	39
CIMR-AD4A0058	30	58	22	45
CIMR-AD4A0072	37	72	30	60
CIMR-AD4A0088	45	88	37	75
CIMR-AD4A0103	55	103	45	91
CIMR-AD4A0139	75	139	55	112
CIMR-AD4A0165	90	165	75	150
CIMR-AD4A0208	110	208	90	180
CIMR-AD4A0250	132	250	110	216
CIMR-AD4A0296	160	296	132	260
CIMR-AD4A0362	185	362	160	304
CIMR-AA4A0414	220	414	185	370
CIMR-AD4A0515	250	515	220	450
CIMR-AD4A0675	355	675	315	605
CIMR-AD4A0930	500	930	450	810
CIMR-AD4A01200	630	1200	560	1090

Specification

Product

A1000

Max. Motor Output (kW)

3~200 VAC, 0.4 – 110

3~400 VAC, 0.4 – 630

Applicable Motor

Induction Motor (IM)

Synchronous Motor (PM)

Control

V/f Control

Open Loop Vector (OLV)

Open Loop Vector (OLV) for PM

Adv. Open Loop Vector (OLV) for PM

Closed Loop Vector (CLV) for PM

Closed loop vector control(CLV)

Speed control range

V/f and V/F with PG 1:40

OLV 1:200

CLV 1:1500

CLV and OLV for PM 1:1500*3

Torque Control

Standard

Max. Output Freqency

400 Hz

Fieldbus Interfaces

RS-232C

RS-422/485 (Memobus/Modbus)

MECHATROLINK-I

MECHATROLINK-II

Ethernet/IP

EtherCAT

Modbus TCP

PROFINET

CC-Link

DeviceNet

PROFIBUS-DP

CANopen

Standards

UL/cUL

RoHS

UL508C

EN ISO 13849-1 PLd

IEC/EN61508 SIL2

Enclosure

IP00, IP20, NEMA1

Functions

Speed/Torque Control Switching

Energy Saving Function

Double Rating (ND/HD)

Speed Search

Slip Compensation

Torque Compensation

PID Control (with sleep function)

DriveWorksEZ (PLC SW)

Momentary Power Loss Ride-Thru

Application Parameter Presets

Preventive Maintenance Functions

RS-232C Interface

USB Interface

Crane Software Drive – A1000

Ratings :

3ph 200V …. 240V +10%/-15%,0.4kw to 110kw
3ph 380V…. 480V +10%/-15%, 0.4kW to 300kW

A1000 Crane drive is used Hoist applications in Industries such as Material Handling in Metals, Cement , Sugar , Paper, Automotive,Construction, Plastic ,textiles and others.

Features

Brake control logic inside the drive.
Overload detection
Travel limit function
Light load acceleration
Impact stop
Slipe compensation during regeneration

Winder Software Drive – A1000

Ratings :

3 ~ 380V …. 480V +10%/-15%, 0.4kW to 160Kw

A1000 for Winder is the solution to requirements of rewinder and unwinder systems. Being able to control induction and PM motors in open or closed loop,it allows precise winding of different materials such as textiles, paper, foils,wires and others.

Features & Benefits

For line speeds up to 1500 m/min.
Accurate motor control for smooth movements assures gentle winding and prevents stretch or material break, especially with sensitive materials
Line tension control by direct torque control or by utilizing a dancer or tension cell
Built in diameter calculator with memory function for easy start up after power off
Static and dynamic friction compensation for precise tension control
Excellent winding performance independent of line speed or diameter thanks to self-adapting PID, selfadapting motor control and inertia compensation
Adjustable taper function optimizes tension depending on diameter
Built in web break detection
Application intelligence in the drive reduces requirements for external PLC and I/Os and improves winding performance
Cost reduction, reliability improvement and lessmaintenance by doing away with external sensors for diameter or web break.

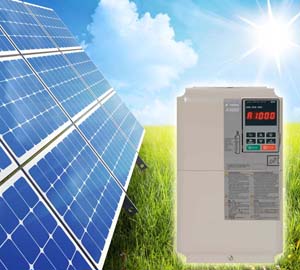

Solar Drive

High Performance Vector Control Drive A1000 Ratings :

3 ~ 200V …240V +10%/-15%, 0.55kW to 110kW
3~ 380V …480V +10%/-15%, 0.55kW to 630 kW

A1000 solar drive is used solar pump applications

Suitable for BLDC and PM motor
Suitable for surface mount and submersible pump for 3 Phase 200Volts/400volts induction motor
wide range capacity from 0.1kw to 18.5kw
All day run stop restart mode management
Diagnostics and self protection features.
Protection against dry run of pump
Simple and faster installation and commissioning.

V1000 Solar Technical Electrical specification
Pump inverter type	V/F control with derived MPPT Technology
Dual supply ( Grid/ Solar)	Change over Available
input DC voltage (VOC)	400volts DC for 200volts Class and 800volts class for 400 volts drive
input DC voltage (Vmp)	280 VDC to 310V Dc /510V dc to 620V DC
Input DC cuttent and power	As per motor capacity
Min frequency	0hz selectable setting range
Max frequency	120Hz
Shock	10 to less than 20 Hz (9.8m/s2) max
output Ac voltage	3 phase 190-240v (-15%.+10%)/380-480V/(-15%,+10%)
Output Ac voltage	As per chart above
Motor frequency	0-60Hz
Motor control technology	V/f Control
MPPT voltage	230V to 360 V for 200 volts 460V to 620 V for 400 volts
Over load capacity	120% for ND
under voltage	125V DC for 200 volts Class/ 250 for 400 volts Class
protection	Dry run , short circuit, Open Phase in input & output side, High Voltage, Low voltage and over load , earthing, recerse polarity.
Ambient temp	-10deg to 50 deg
Relative humidity	Max 95% relative humanity
