Description

Features

Compact Vector control Drive :

1 ~ 100V , 0.1kW to 2.2kW
3 ~ 200V , 0.1kW to 5.5kW
1 ~ 200V , 0.1kW to 2.2kw
3 ~ 400V , 0.2kW to 5.5kW

The J1000 meets all automation requirements for compact applications with variable speed operation and energy saving characteristics. A wide range of useful functions upgrade your machine and offer great potentials

Features

Compact – Sleek desing and side by side installation
A Breeze to operate – Easy parameterization with quick setup Mode.
Environmentally friendly – Complaince with Eus RoHs directive
Automatic torque compensation across entire speed range
Stall Prevention Functions for stable operation during changes of load or power supply
Auto speed search functionality
Extensive Braking features

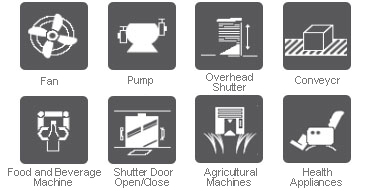

Main Application’s

Download

Click here to download Catalogue
Click here to download Manual

COMPACT V/F CONTROL DRIVE

200V class Single Phase

J1000 Model number	Pn(kw)	In(A)	Ph(kw)	Ihd(A)
CIMR-JTBA0001BAA	0.2	1.2	0.1	0.8
CIMR-JTBA0002BAA	0.4	1.9	0.2	1.6
CIMR-JTBA0003BAA	0.75	3.3	0.4	3.0
CIMR-JTBA0006BAA	1.1	6.0	0.75	6.0
CIMR-JTBA0010BAA	2.2	9.6	1.5	8.0

200V class Three Phase

J1000 Model number	Pn(kw)	In(A)	Ph(kw)	Ihd(A)
CIMR-JT2A0001BAA	0.2	1.2	0.1	0.7
CIMR-JT2A0002BAA	0.4	1.9	0.2	1.5
CIMR-JT2A0004BAA	0.75	3.5	0.4	2.9
CIMR-JT2A0006BAA	1.1	6	0.75	5.8
CIMR-JT2A0010BAA	2.2	9.6	1.5	7.5
CIMR-JT2A0012BAA	3	12	2.2	11
CIMR-JT2A0020BAA	5.5	19.6	3.7	18.9

400V class Three Phase

J1000 Model number	Pn(kw)	In(A)	Ph(kw)	Ihd(A)
CIMR-JT4A0001BAA	0.4	1.2	0.2	1.2
CIMR-JT4A0002BAA	0.75	2.1	0.4	1.8
CIMR-JT4A0004BAA	1.5	4.1	0.75	3.4
CIMR-JT4A0005BAA	2.2	5.4	1.5	4.8
CIMR-JT4A0007BAA	3	6.9	2.2	5.5
CIMR-JT4A0007BAA	3.7	8.8	3	7.2
CIMR-JT4A0011BAA	5.5	11.1	3.7	9.2

Specification

Product

J1000

Max. Motor Output (kW)

1~230 VAC, 0.1 – 2.2

3~200 VAC, 0.1 – 5.5

3~400 VAC, 0.2 – 5.5

Applicable Motor

Induction Motor (IM)

Control

V/f Control

Max. Output Freqency

400 Hz

Fieldbus Interfaces

RS-232C*

RS-422/485*

Standards

UL/cUL

RoHS

UL508C

Enclosure

IP20, Finless Type

Functions

Energy Saving Function

Double Rating (ND/HD)

Speed Search

Slip Compensation

Momentary Power Loss Ride-Thru

Application Parameter Presets
