Description

Features

Compact Vector control Drive Ratings :

1 ~ 200V , 0.1kW to 4.0kw
3 ~ 200V , 0.1kW to 18.5kW
3 ~ 400V , 0.2kW to 18.5kW

V1000 is a general purpose inverter drive covering the demands of a wide field of applications including Open-Loop-Vector functionality and the usage of PM motor without feedback

Features

High flux braking for 50% reduction of braking time
Quick response on load and speed changes to improves machine performance.
Online Auto-Tuning to optimise for improved motor performance at low speed
Open Loop Vector Control for PM motor operation.
Safe Disable Inputs for Safe Torque OFF

Application

Download

Click here to download Catalogue
Click here to download Manual

Brochure

COMPACT VECTOR CONTROL DRIVE

200V class Single Phase

V1000 Model number	Pn(kw)	In(A)	Phd(kw)	Ihd(A)
CIMR-VTBA0001BAA	0.2	1.2	0.1	0.8
CIMR-VTBA0002BAA	0.4	1.9	0.2	1.6
CIMR-VTBA0003BAA	0.75	3.3	0.4	3.0
CIMR-VTBA0006BAA	1.1	6.0	0.75	5.0
CIMR-VTBA0010BAA	2.2	9.6	1.5	8.0
CIMR-VTBA0012BAA	3	12	2.2	11

200V class Three Phase

V1000 Model number	Pn(kw)	In(A)	Phd(kw)	Ihd(A)
CIMR-VT2A0001BAA	0.2	1.2	0.1	0.8
CIMR-VT2A0002BAA	0.4	1.9	0.2	1.6
CIMR-VT2A0004BAA	0.75	3.5	0.4	3
CIMR-VT2A0006BAA	1.1	6	0.75	5
CIMR-VT2A0010BAA	2.2	8	1.5	8
CIMR-VT2A0012BAA	3	9.6	2.2	11
CIMR-VT2A0020BAA	5.5	12	3.7	17.5
CIMR-VT2A0030FAA	7.5	17.5	5.5	25
CIMR-VT2A0040FAA	11	19.6	7.5	33
CIMR-VT2A0056FAA	15	68	11	47
CIMR-VT2A0069FAA	18.5	80	15	60

400V class Single Phase

V1000 Model number	Pn(kw)	In(A)	Phd(kw)	Ihd(A)
CIMR-VT4A0001BAA	0.4	1.2	0.2	1.2
CIMR-VT4A0002BAA	0.75	2.1	0.4	2.1
CIMR-VT4A0004BAA	1.5	4.1	0.75	3.4
CIMR-VT4A0005BAA	2.2	5.4	1.5	4.8
CIMR-VT4A0007BAA	3	6.9	2.2	5.5
CIMR-VT4A0009BAA	3.7	8.8	3	7.2
CIMR-VT4A0011BAA	5.5	11.1	3.7	9.2
CIMR-VT4A0018FAA	7.5	17.5	5.5	14.8
CIMR-VT4A0023FAA	11	23	7.5	18
CIMR-VT4A0031FAA	15	31	11	24
CIMR-VT4A0038FAA	18.5	38	15	31

Specification

Product

V1000

Max. Motor Output (kW)

1~230 VAC, 0.1 – 4.0a

3~200 VAC, 0.1 – 18.5

3~400 VAC, 0.2 – 18.5

Applicable Motor

Induction Motor (IM)

Synchronous Motor (PM)

Control

V/f Control

Open Loop Vector (OLV)

Open Loop Vector (OLV) for PM

Speed control range

V/f and V/F with PG 1:40

OLV 1:100

CLV and OLV for PM 1:10*3

Max. Output Freqency

400 Hz

Fieldbus Interfaces

RS-232C

RS-422/485 (Memobus/Modbus)

MECHATROLINK-I

MECHATROLINK-II

Ethernet/IP

EtherCAT

Modbus TCP

PROFINET

CC-Link

DeviceNet

PROFIBUS-DP

CANopen

Standards

UL/cUL

RoHS

UL508C

EN ISO 13849-1 PLd

IEC/EN61508 SIL2

Enclosure

IP20, NEMA1, IP66, Finless Type

Functions

Speed/Torque Control Switching

Energy Saving Function

Double Rating (ND/HD)

Speed Search

Slip Compensation

Torque Compensation

PID Control (with sleep function)

DriveWorksEZ (PLC SW)

Momentary Power Loss Ride-Thru

Application Parameter Presets

Preventive Maintenance Functions

RS-232C Interface

Solar Drive

Compact Vector control Drive Ratings :

1 ~ 200V , 0.1kW to 4.0kw
3 ~ 200V , 0.1kW to 18.5kW
3 ~ 400V , 0.2kW to 18.5kW

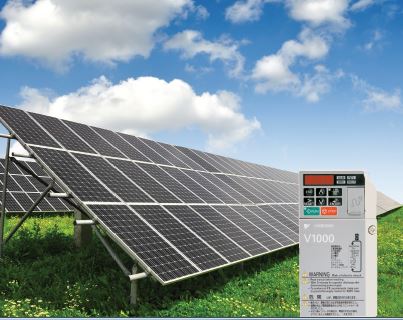

V1000 solar drive is used solar pump applications

Suitable for BLDC and PM motor
Suitable for surface mount and submersible pump for 3 Phase 200Volts/400volts induction motor
wide range capacity from 0.1kw to 18.5kw
All day run stop restart mode management
Diagnostics and self protection features.
Protection against dry run of pump
Simple and faster installation and commissioning.

	V1000 Solar Technical Electrical specification
Pump inverter type	V/F control with derived MPPT Technology
Dual supply ( Grid/ Solar)	Change over Available
input DC voltage ( VOC)	400volts DC for 200volts Class and 800volts class for 400 volts drive
input DC voltage ( Vmp)	280 VDC tp 310 V Dc /510 V dc to 620 V DC
Input DC cuttent and power	As per motor capacity
Min frequency	0hz selectable setting range
Max frequency	120Hz
Shock	10 to less than 20 Hz (9.8m/s2) max
output Ac voltage	3 phase 190-240v (-15%.+10%)/380-480V/(-15%,+10%)
Output Ac voltage	As per chart above
Motor frequency	0-60Hz
Motor control technology	V/f Control
MPPT voltage	230V to 360 V for 200 volts 460V to 620 V for 400 volts
Over load capacity	120% for ND
under voltage	125V DC for 200 volts Class/ 250 for 400 volts Class
protection	Dry run , short circuit, Open Phase in input & output side, High Voltage, Low voltage and over load , earthing, recerse polarity.
Ambient temp	-10deg to 50 deg
Relative humidity	Max 95% relative humanity
